A design idea is created
in a form of three dimensional model or sketch |
 |
|
This design is drawn in
the form of technical drawing, by considering the following
factors:
+ The production amount
+ The plastic material needed
+ Production budget.
|
 |
|
Technical drawing for
mouldbase is produced |
 |
|
Choosing and creating
the mouldbase |
 |
|
The mouldbase is processed
by the following actions, such as:
+ Milling
+ EDM
+ Wire cutting
+ Grinding
+ Manual finishing
|
 |
|

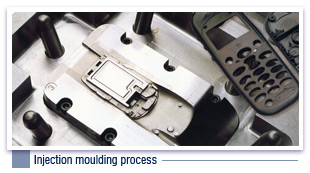

Prototype spraying in
an injection moulding machine.
Re-checking the mould result prior to mass production.
|
 |
|
Final result of the design
is realized by considering the colour, design and optic.
In addition, this product is now ready to break into the
market. |
